SK Collets
$ 100.00
Classification :
SK Collets with large tightening force, large clamping range and good accuracy.
It is generally used for supporting the use of CNC tool holders
·Works on all SK Collet Chuck Holder
·Made of 65MN
·Size includes SK06/SK10/SK13/SK16/SK20/SK25
It is generally used for supporting the use of CNC tool holders
·Works on all SK Collet Chuck Holder
·Made of 65MN
·Size includes SK06/SK10/SK13/SK16/SK20/SK25
Keywords:
Collets
SK Collets with large tightening force, large clamping range and good accuracy.
It is generally used for supporting the use of CNC tool holders
·Works on all SK Collet Chuck Holder
·Made of 65MN
·Size includes SK06/SK10/SK13/SK16/SK20/SK25

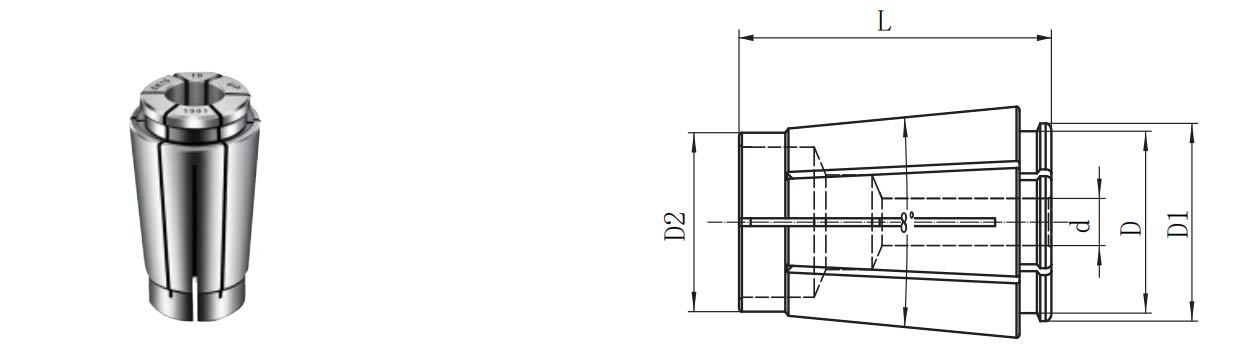

| Order No. | Size(mm) | ||||
| L | d(clamping range) | D | D1 | D2 | |
| SK06 | 25 | 1-6 | 7.6 | 8.9 | 7.5 |
| SK10 | 30.5 | 3-10 | 11.5 | 13 | 11.8 |
| SK13 | 39 | 3-13 | 15.1 | 17 | 15.4 |
| SK16 | 45 | 3-16 | 18.5 | 20.5 | 19 |
| SK20 | 54 | 3-20 | 23 | 25 | 22.6 |
| SK25 | 57 | 3-25 | 28 | 29.7 | 28.8 |
