Cool Collets

Classification :

ERC sealing collets are ideal for coolant thru machines and tooling
Coolant is sealed by the use of special slits in the collet
·According to standard DIN6499
·Made of 65Mn
·Size includes ER11C/ER16C/ER20C/ER25C/ER32C/ER40C

E-mail

Keywords:

Collets

Collets	ER11	ER16	ER20	ER25	ER32	ER40

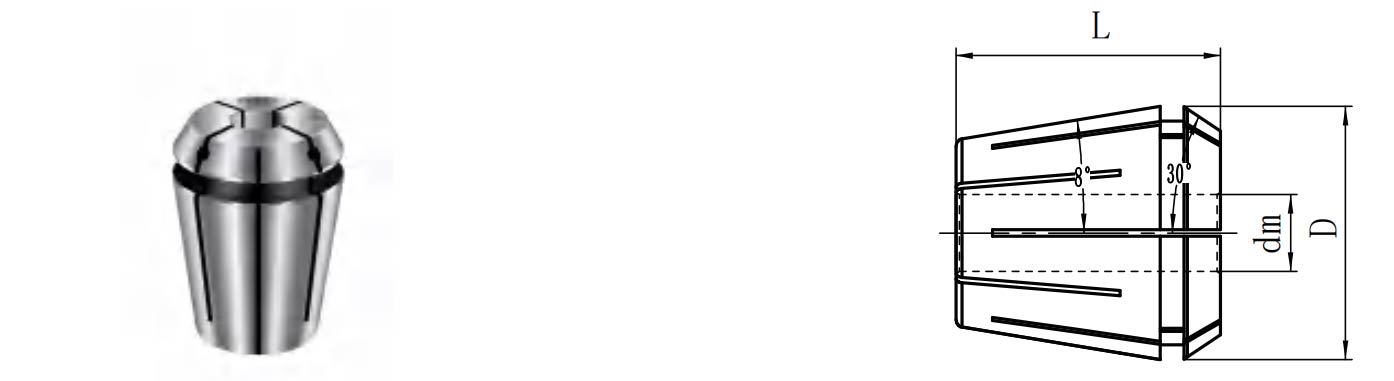

dm Clamping Range(mm)	L/D(mm) 18.5/11.5	L/D(mm) 27.5/17.0	L/D(mm) 31.5/21.0	L/D(mm) 34.0/26.0	L/D(mm) 40.0/33.0	L/D(mm) 46.0/41.0
3.0	ER11-3C
3.5	ER11-3.5C
4.0	ER11-4C
4.5	ER11-4.5C
5.0	ER11-5C	ER16-5C
5.5	ER11-5.5C
6.0	ER11-6C	ER16-6C
6.5	ER11-6.5C
7.0	ER11-7C	ER16-7C	ER20-7C
8.0		ER16-8C	ER20-8C	ER25-8C	ER32-8C
9.0		ER16-9C	ER20-9C	ER25-9C	ER32-9C
10.0		ER16-10C	ER20-10C	ER25-10C	ER32-10C	ER40-10C
11.0			ER20-11C	ER25-11C	ER32-11C	ER40-11C
12.0			ER20-12C	ER25-12C	ER32-12C	ER40-12C
13.0			ER20-13C	ER25-13C	ER32-13C	ER40-13C
14.0				ER25-14C	ER32-14C	ER40-14C
15.0				ER25-15C	ER32-15C	ER40-15C
16.0				ER25-16C	ER32-16C	ER40-16C
17.0					ER32-17C	ER40-17C
18.0					ER32-18C	ER40-18C
19.0					ER32-19C	ER40-19C
20.0					ER32-20C	ER40-20C
21.0						ER40-21C
22.0						ER40-22C
23.0						ER40-23C
24.0						ER40-24C
25.0						ER40-25C
26.0						ER40-26C

Collets
