SDC Collets
$ 100.00
Classification :
SDC collet is widely used in milling, boring, drilling, tapping, CNC carving, spindle machines and other processing operations, CNC lathes, machining centers, tapping machines, drilling machines, milling machines and other equipment operations.
·Made of 65Mn
·Size includes SDCO4/SDCO6/SDCO8/SDC10/SDC12
·Made of 65Mn
·Size includes SDCO4/SDCO6/SDCO8/SDC10/SDC12
Keywords:
Collets
SDC collet is widely used in milling, boring, drilling, tapping, CNC carving, spindle machines and other processing operations, CNC lathes, machining centers, tapping machines, drilling machines, milling machines and other equipment operations.
·Made of 65Mn
·Size includes SDCO4/SDCO6/SDCO8/SDC10/SDC12

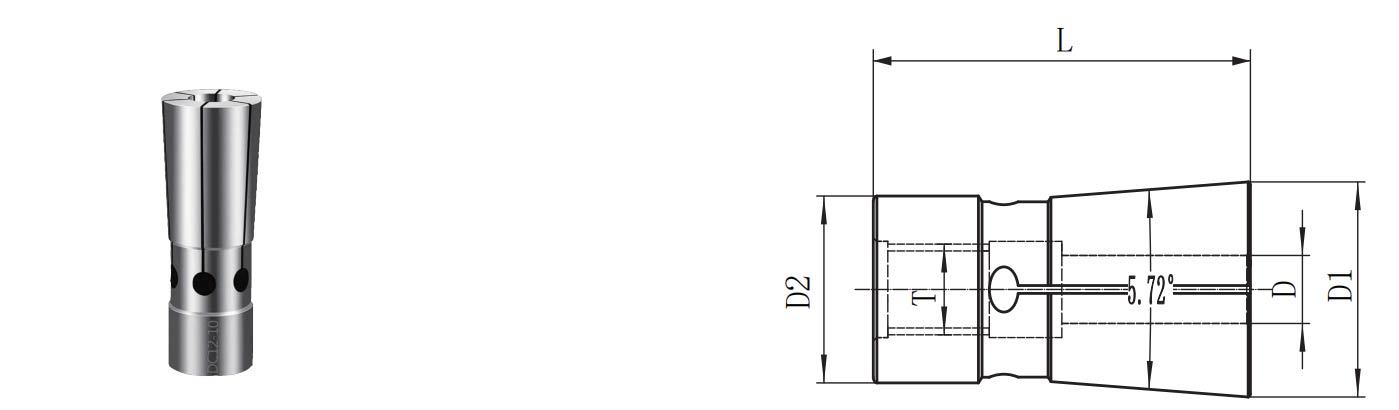

| Order No. | Size(mm) | ||||
| L | D(Clamping range) | D1 | D2 | T | |
| SDCO4 | 31 | 3-4 | 7.05 | 5.5 | M4 |
| SDCO6 | 36 | 3-6 | 9.7 | 8 | M5 |
| SDCO8 | 45 | 3-10 | 15.1 | 12.8 | M6 |
| SDC10 | 52 | 3-10 | 19.05 | 16.5 | M8 |
| SDC12 | 60 | 3-12 | 22.1 | 19 | M10 |
