Straight Collets
$ 100.00
Classification :
High Performance C type Power Milling Straight Collets for use on SC Power Milling Tool Holder Chucks in sizes C20, C25, C32 and C42.
1.Material:65Mn
2.Hardness:HRC44-48
3.Accuracy:within 0.012mm
4.Size includes C20/C25/C32/C42
1.Material:65Mn
2.Hardness:HRC44-48
3.Accuracy:within 0.012mm
4.Size includes C20/C25/C32/C42
Keywords:
Collets
High Performance C type Power Milling Straight Collets for use on SC Power Milling Tool Holder Chucks in sizes C20, C25, C32 and C42.
1.Material:65Mn
2.Hardness:HRC44-48
3.Accuracy:within 0.012mm
4.Size includes C20/C25/C32/C42

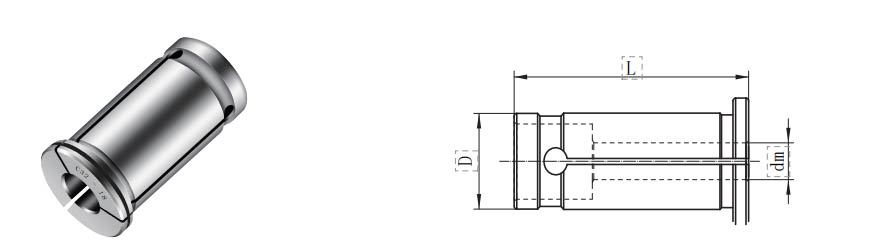

| Collets | C20 | C25 | C32 | C42 |
| dm Clamping Range(mm) |
L/D(mm) 55/20 |
L/D(mm) 60/25 |
L/D(mm) 65/32 |
L/D(mm) 70/42 |
| 3 | C2O-3 | |||
| 4 | C20-4 | C25-4 | ||
| 5 | C20-5 | C25-5 | ||
| 6 | C20-6 | C25-6 | C32-6 | C42-6 |
| 8 | C20-8 | C25-8 | C32-8 | C42-8 |
| 10 | C20-10 | C25-10 | C32-10 | C42-10 |
| 12 | C20-12 | C25-12 | C32-12 | C42-12 |
| 14 | C20-14 | C25-14 | C32-14 | C42-14 |
| 16 | C20-16 | C25-16 | C32-16 | C42-16 |
| 18 | C25-18 | C32-18 | C42-18 | |
| 20 | C25-20 | C32-20 | C42-20 | |
| 25 | C32-25 | C42-25 | ||
| 32 | C42-32 |
