5C Collets
$ 100.00
Classification :

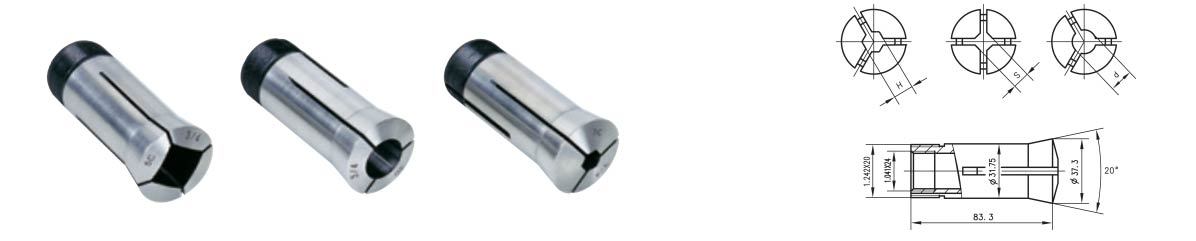

Precision 5C collet with round, square and hex hole.
⒈ Material：65Mn
⒉ Hardness：clamping part HRC55～60 elastic part HRC40～45
⒊ This unit is applicable to all sorts of lathes,which spindle
taper hole is 5C,such as automatic lathes,CNC lathes etc.
⒈ Material：65Mn
⒉ Hardness：clamping part HRC55～60 elastic part HRC40～45
⒊ This unit is applicable to all sorts of lathes,which spindle
taper hole is 5C,such as automatic lathes,CNC lathes etc.
Keywords:
Collets
Precision 5C collet with round, square and hex hole.
⒈ Material：65Mn
⒉ Hardness：clamping part HRC55～60 elastic part HRC40～45
⒊ This unit is applicable to all sorts of lathes,which spindle
taper hole is 5C,such as automatic lathes,CNC lathes etc.
| Order No. | Type | d(clamping range) | Wt(kg) | |
| (mm) | In | |||
| 5C-01-d | Round | 1~28 | 1/32~7/8 | 0.24 |
| 5C-02-S | Square | 3~19 | 1/8~3/4 | 0.24 |
| 5C-03-H | Hex | 3~22 | 1/8~7/8 | 0.24 |
