ISO
$ 100.00
Classification :
ISO-ER COLLET HOLDER
·ISO
·Nuts are preset dynamic balance nuts.
·Tool holder for machining centers or CNC machine tools.
·When used, the collet must first be loaded into the nut, then into the tool, and then locked into the tool holder body.
·Runout: 0.005 mm
·Blancing: G6.3/15000 RPM、G2.5/25000RPM
·ISO
·Nuts are preset dynamic balance nuts.
·Tool holder for machining centers or CNC machine tools.
·When used, the collet must first be loaded into the nut, then into the tool, and then locked into the tool holder body.
·Runout: 0.005 mm
·Blancing: G6.3/15000 RPM、G2.5/25000RPM
Keywords:
Woodworking
ISO-ER COLLET HOLDER
·ISO
·Nuts are preset dynamic balance nuts.
·Tool holder for machining centers or CNC machine tools.
·When used, the collet must first be loaded into the nut, then into the tool, and then locked into the tool holder body.
·Runout: 0.005 mm
·Blancing: G6.3/15000 RPM、G2.5/25000RPM

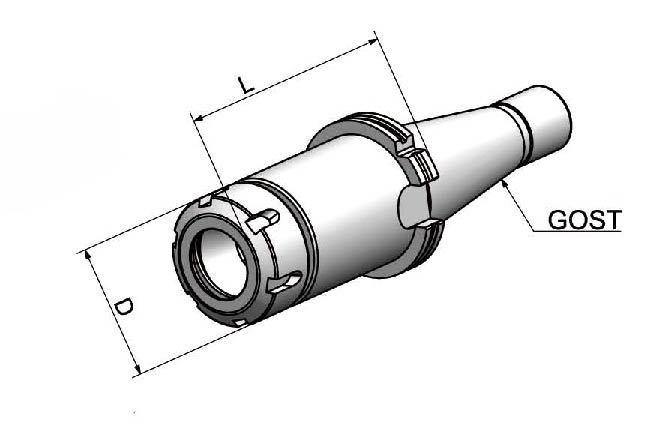

| Size | D | L | Capacity |
| ISO40-ER16-70 | 28 | 70 | 1-10 |
| ISO40-ER25-70 | 42 | 70 | 2-16 |
| ISO40-ER32-70 | 50 | 70 | 2-20 |
| ISO40-ER40-80 | 63 | 80 | 3-26 |
| ISO40-ER16-100 | 28 | 100 | 1-10 |
| ISO40-ER25-100 | 42 | 100 | 2-16 |
| ISO40-ER32-100 | 50 | 100 | 2-20 |
| ISO40-ER40-100 | 63 | 100 | 3-26 |
| ISO40-ER16-160 | 28 | 160 | 1-10 |
| ISO40-ER25-160 | 42 | 160 | 2-16 |
| ISO40-ER32-160 | 50 | 160 | 2-20 |
| ISO40-ER40-160 | 63 | 160 | 3-26 |
| ISO50-ER16-80 | 28 | 80 | 1-10 |
| ISO50-ER25-80 | 42 | 80 | 2-16 |
| ISO50-ER32-70 | 50 | 70 | 2-20 |
| ISO50-ER40-80 | 63 | 80 | 3-26 |
| ISO50-ER16-100 | 28 | 100 | 1-10 |
| ISO50-ER25-100 | 42 | 100 | 2-16 |
| ISO50-ER32-100 | 50 | 100 | 2-20 |
| ISO50-ER40-100 | 63 | 100 | 3-26 |
| ISO50-ER16-160 | 28 | 150 | 1-10 |
| ISO50-ER25-160 | 42 | 160 | 2-16 |
| ISO50-ER32-160 | 50 | 160 | 2-20 |
| ISO50-ER40-160 | 63 | 160 | 3-26 |
